VDO SATELLITE ANTENNAS

VDO Free way satellite antennas
limitless reception anywhere in the world, just like at home.

The range of products offered by VDO includes satellite antennas, radio, advanced multimedia systems and much more!


All our products are specially designed for moving vehicles and are ideal for use in all environments that require high resistance to vibration, high temperatures and harsh working conditions: the right choice for every requirement on boats, campers, trucks, bus and cars.


What differentiates radically VDO products are the minimum current consumption duedirect supply to 12V. This will allow for example to keep the generator turned off on your boat, and thus to avoid annoying noises while you can enjoy in total relax and comfort all the best from satellite TV, watch DVDs or listen to the radio.


And then you just need to start with on board all VDO multimedia, enjoy your trip!


VDO Ocean Line
limitless reception anywhere in the world, just like at home.

VDO presents the latest range of satellite antennas, offering cutting-edge technology with unique design.


VDO satellite antennas offer simple installation thanks to a single power/signal cable, as well as high quality functionality and perfectly silent reception. At the push of a button you can relax and enjoy your favourite television program or listen to the radio, anywhere in the world.

VDO Ocean Line motorised satellite antennas are available in four sizes: cm 32, 37, 45 and 60.

All sizes are equipped with three outputs except the 32 cm model which has one. The 45 and 60 cm antennas are also available with four outputs and are equipped with GPS and automatic skew for improved reception, including on the outskirts of satellite coverage areas.


All Ocean Line antennas come equipped with control box and can be connected to any digital decoder.



VDO Free Way
Land satellite antennas - Free Way

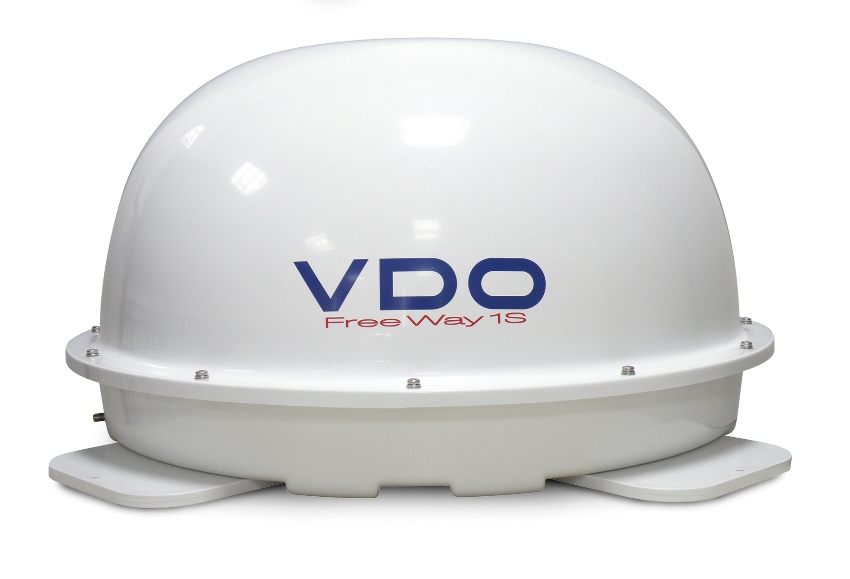

VDO Free Way motorised antennas can be used on campers, caravans, trucks and buses, offering satellite reception for both stationary (Free Way 1S) and moving vehicles (Free Way 1M). Both Free Way antennas come equipped with control box and can be connected to any digital decoder.


VDO Ocean Sport & Ocean Sailing
Antennas DVB-T Ocean Sport & Ocean Sailing

TV antennas





Amplified antennas for the reception of land-based analogue and DVB-T digital signals,available in two models for boats, campers,caravans and trucks. Cable included.

TV Digital antenna

With its small size, the Ocean Sailing and Ocean Sports antennas offer excellent reception of the different types of television signal, both DVB-T and analog.


Power line supplier

The Power line supplier 12-24 V low noise figure included ensures the best reception in all conditions.


Mounting system

The anchoring base included ensures quick and easy installation.

Ocean Sport Codice ITA-039-000-005

Ocean Sailing Codice ITA-039-000-015

Antenna VHF

Antenna type: rod aerial 1/4 lambda
Antenna gain: 20 dB
Low noise figure: 2,7 dB
Frequency range: 175-235 MHz (III band)
Polarisation antenna gain: -3 dB (V) / -6 dB (H)
Radiation range: 60 (V) / 360 (H)
Filter 175-225 MHz a -3 dB
Outputs: +13 dbm
Intermodulazione IP3: 33,5 dB



Antenna UHF

Antenna type: monocono
Antenna gain: 16 dB
Low noise figure: 2,7 dB
Frequency range: 470860 MHz (IV-V band)
Polarisation antenna gain: +3 dB (V) / 0 dB (H)
Radiation range: 60 (V) / 360 (H)
Filter 470-860 MHz a -3 dB
Outputs: +12 dbm
